Network Analyzers


Suitable for wide-band signal analysis at mmW frequencies in applications such as E-Band Radar,  5G-NR mmW,
Wi-Gig 802.11ad/ay5G-NR mmW,

N523xA/B PNA-L Series Network Analyzers

  • Up to 50 GHz

  • 2 or 4 ports configuration (2 ports up to 20 GHz)

  • Software options available

Typical Configuration

  • N5234B-216 [2 ports, Configurable Test Set, Source Attenuators]

  • S93082A [Scalar mixer/converter measurements]

  • S93080A [Frequency-offset measurements]


High-performance Network Analyzer offering superb performance, with dual source and variety of optional applications such as Spectrum Analyzer, Noise Figure measurements and more

N522xA/B PNA series Network Analyzers

  • Up to 67 GHz (110 GHz with frequency extenders)

  • 2 or 4 ports configuration

  • Software options available

Typical Configuration

  • N5227B-419 [4-port, 2nd source, configurable test set, ref mixer switch, source/receiver attenuators, bias tees]

  • N5227B-020 [Add IF inputs]

  • S93083A [Vector and Scalar Mixer/Converter Measurements]

  • S93086A [Gain-Compression Measurements]

  • S93029A [Noise Figure Measurements with Vector Correction]

The flagship of Network Analyzers offering the best performance, with dual source and variety of optional applications such as Spectrum Analyzer, Noise Figure measurements and more


N524xA/B PNA-X series Network Analyzers

  • Up to 67 GHz (110 GHz with frequency extenders)

  • 2 or 4 ports configuration

  • Software options available

Typical Configuration

  • N5247B-419 [4-port, configurable test set, second source, source attenuators, receiver attenuators, bias tees]

  • N5247B-020 [Add IF inputs]

  • Add noise receiver to 50 GHz

  • N5247B-029 [Add noise receiver to 50 GHz]

  • S93083A [Vector and Scalar Mixer/Converter Measurements]

  • S93086A [Gain-Compression Measurements]

  • S93029A [Noise Figure Measurements with Vector Correction]

  • S930907B [Spectrum Analysis, up to 67 GHz]

E5080B ENA Vector Network Analyze

  • Up to 53 GHz

  • 2 /4 ports configuration

Typical Configuration

  • E5080B-290 [2-port test set, 9 kHz to 9 GHz]


E5063A ENA Vector Network Analyzer

  • Up to 18 GHz

  • 2 ports configuration

Typical Configuration

  • E5063A-285 [2-port test set, 100 kHz to 8.5 GHz[


E5071C ENA Vector Network Analyzer

  • Up to 20 GHz

  • 2 or 4 port configuration

Typical Configuration

  • E5071C-485 [4-port Test Set, 100 kHz to 8.5 GHz with Bias Tees]

  • E5071C-TDR [Enhanced Time Domain Analysis]

  • E5071C-008 [Frequency Offset Mode]

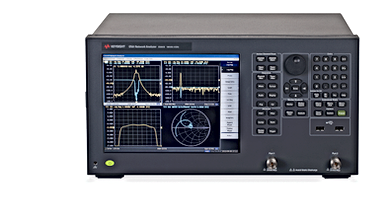

E5061B ENA Vector Network Analyzer

  • Up to 3 GHz

  • 2 ports configuration

Typical Configuration

  • E5061B-235 [S-parameter test set, 100 kHz to 3 GHz, 50 ohm system impedance]


Perform accurate measurements anywhere with the handheld fieldfox analyzer.
Optional spectrum analyzer, full S-parameters VNA, Cable & Antenna tester and eCal support

N99xxA Fieldfox handheld Analyzer

  • Up to 50 GHz

Typical Configuration

  • N9918A-210 [Vector Network Analyzer Transmission/Reflection]

  • N9918A-211 [Vector Network Analyzer Full 2-port S-parameters]

  • N9918A-233 [Spectrum Analyzer]
